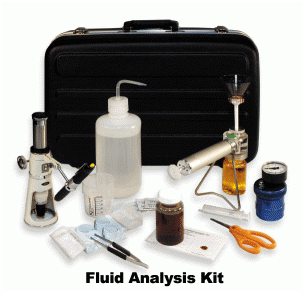

PARTICULATE FLUID ANALYSIS KIT

Bolbum Oil Filtration Particulate Fluid Analysis Kit was developed to enable a person to conduct immediate oil analysis and obtain an immediate fluid cleanliness contamination level of the sampled fluid. The kit enables the end user to achieve an ISO Cleanliness Code Cleanliness Level in as fast as 15 minutes. You can use this kit to determine which systems need improved filtration. When improvements are made it can be used to monitor the systems cleanliness status. This kit is a great tool to demonstrate the effectiveness of Bolbum Oil Filtration Synthetic Media Particulate Removal Elements.

A minimum 25 ml fluid sample is needed per analysis. A 25 mm diameter 1 or 5 micron patch membrane is placed under the fluid funnel assembly. Then a 25 ml fluid sample is placed into the funnel assembly. With the funnel assembly attached to the vacuum pump the analysis can now be performed. The vacuum pump is then actuated which pulls the fluid from the funnel through the 25 mm patch membrane filter. Use the solvent to wash the funnel of all fluid residue. Then place the patch membrane onto the included 3/5 index cards and seal the patch membrane with the included adhesive laminating seals. The laminating seals keep outside particles from contaminating the patch membrane. Then use the 100X microscope to visually see the captured particles caught by the 1 or 5 micron patch membrane filters. This visual representation can be used to determine the ISO Fluid Cleanliness Class Range. See the two fluid sample photos at right of page for more detail. The Particulate Fluid Analysis Kit includes enough supplies for 100 Fluid Samples. All apparatus is packaged in a Foam Filled Carrying Case.
